Description

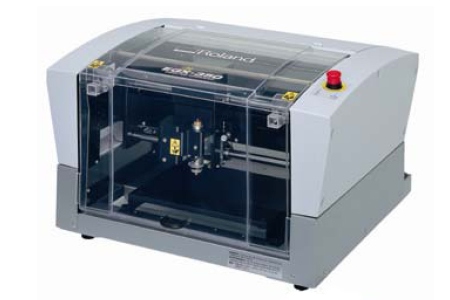

ModelEGX-350Table Size305 (W) x 230 (D) mm (12 x 9.1 in.)XYZ-axis travels305 (X) x 230 (Y) x 40 (Z) mm (12 x 9.1 x 1.6 in.)XYZ-axis drive systemStepping motor, 3-axis simultaneous controlOperating speedX and Y axes: 0.1 to 60 mm/sec. (0.004 to 2.4 in./sec),
Z axis: 0.1 to 30 mm/sec. (0.004 to 1.2 in./sec)Software Resolution0.01 mm/step or 0.025 mm/step (0.0004 in./step or 0.001 in./step)Mechanical ResolutionX and Y axes: 0.0025 mm/step (0.0001 in./step),
Z axis: 0.00125 mm/step (0.0005 in./step)Spindle MotorBrushless DC motor, max. 50 WSpindle speed5000 to 20000 rpmTool ChuckCutter holder, collet methodInterfaceUSBLoadable workpiece thicknessMax. 40 mm (1.6 in.) or 38 mm (1.5 in.) when nose unit is usedControl command setRML-1Power RequirementsAC 100 to 120 V ±10%, 1.3 A, 50/60 Hz (overvoltage category II, IEC 60664-1); or AC 220 to 240 V ±10%, 0.6 A, 50/60 Hz (overvoltage category II, IEC 60664-1)Power consumption122 W
Acoustic Noise LevelDuring operation: 60 dB (A) or less (when not cutting),
During standby: 40 dB (A) or less (as specified by ISO 7779)Dimensions616 (W) x 591 (D) x 393 (H) mm / When cover is open: 598 (W) x 545 (D) x 685 (H) mmWeight34 kg (75 lb.)EnvironmentalTemperature: 5 to 40°C (41 to 104°F),
Humidity: 35 to 80 % (no condensation)
Ambient pollution degree: 3 (as specified by IEC 60664-1)Included itemsPower cable, depth regulator nose (nose unit), nose-unit retainer (retaining screw, spring), spare mounting screw (for the cutter holder), character cutter (diameter 3.175 mm), flat cutter (diameter 3.175 mm), wrench, solid collet (diameter 3.175 mm), solid collet (diameter 4.36 mm), hexagonal wrench, hexagonal screwdriver, handy panel, adhesive sheet, vacuum adapter for chip cleaning, Roland Software CD-ROM, Roland EngraveStudio™ CD-ROM, Roland Software Program Guide, Roland EngraveStudio™ Program Guide, and User’s Manual
